Measuring equipment

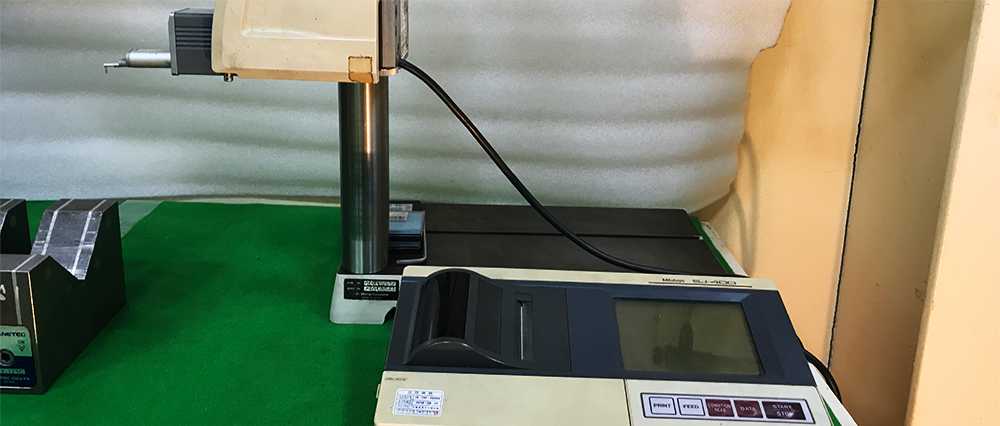

Roughness Meter (SJ-400)
| Manufacturer | MITUTOYO (JAPAN) |
|---|---|
| Usage | Product Roughness Measurement |

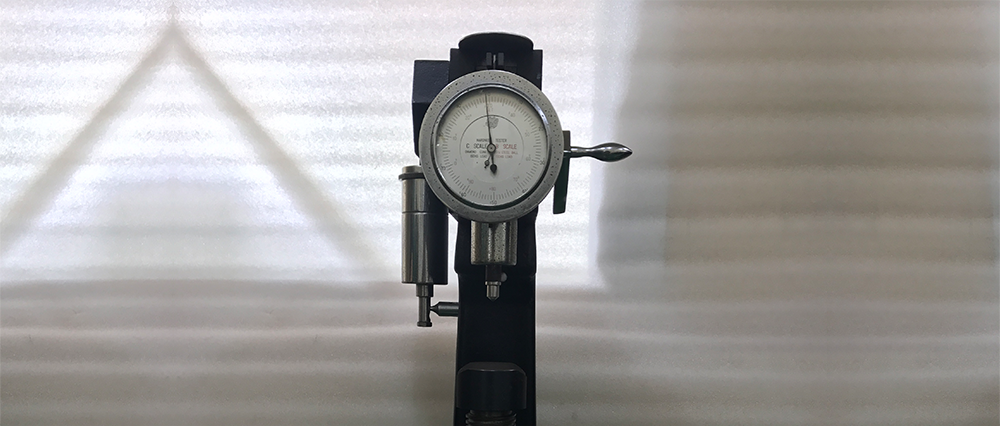

Hardness Tester
| Usage | Rockwell Hardness Tester |
|---|

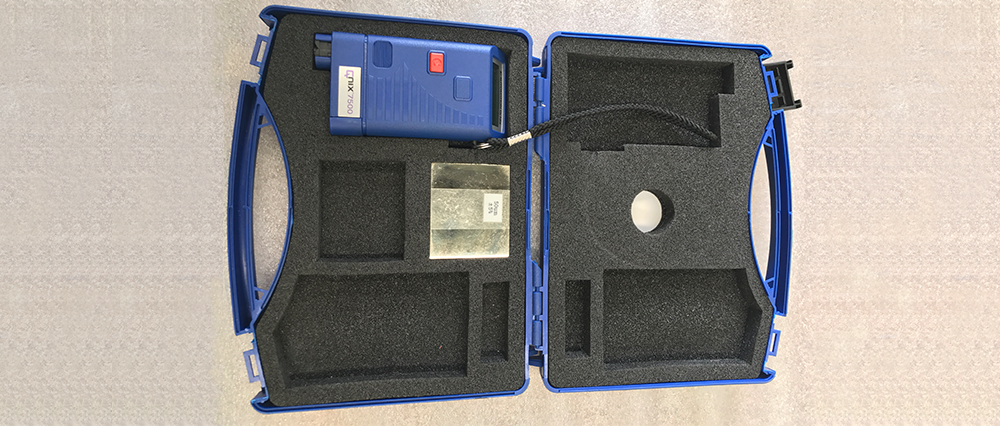

Plating Thickness Meter
| Substrates | Fe Probe - Steel or Iron NFe Probe - non-magnetic metals such as aluminum, copper, brass, zinc, or stainless steel |
|---|---|
| Measuring Range | 0.00 - 80.00 mils |
| Repetitive Accuracy | ±2% |
| Basic Tolerance | .06 mils |
| Minimum Curvature | .2" Conve |
| Minimum Substrate Thickness | Fe 0.01“ NFe 0.002" |
| Power Supply | 9v Alkaline |
| Weight | 5 oz |
| Dimensions | 4-1/2" x 2" x 1" |
| Storing Temperature | 14°F to 140°F |

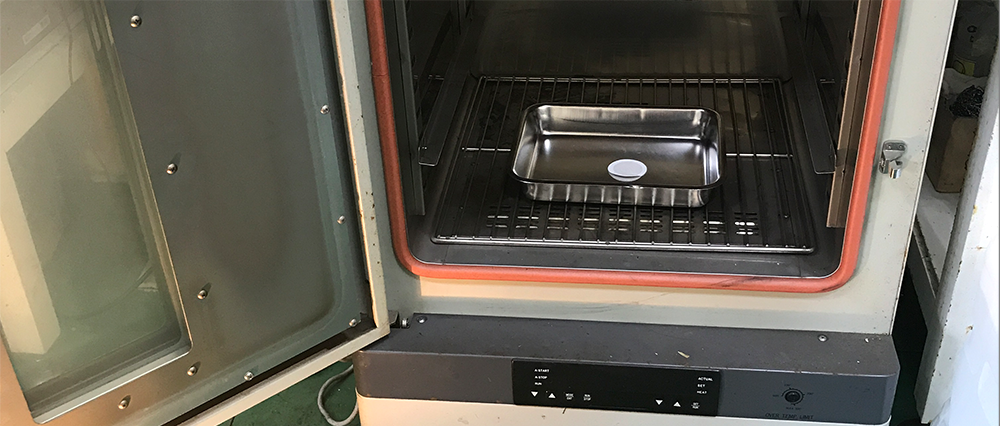

Drier
| Temp.range(℃Volume(L) | Ambient Temperature +40~250 |
|---|---|
| Max.Temp.Fluctuation(℃) | ±0.3 at 100℃ |
| Volume(L) | 1000 |

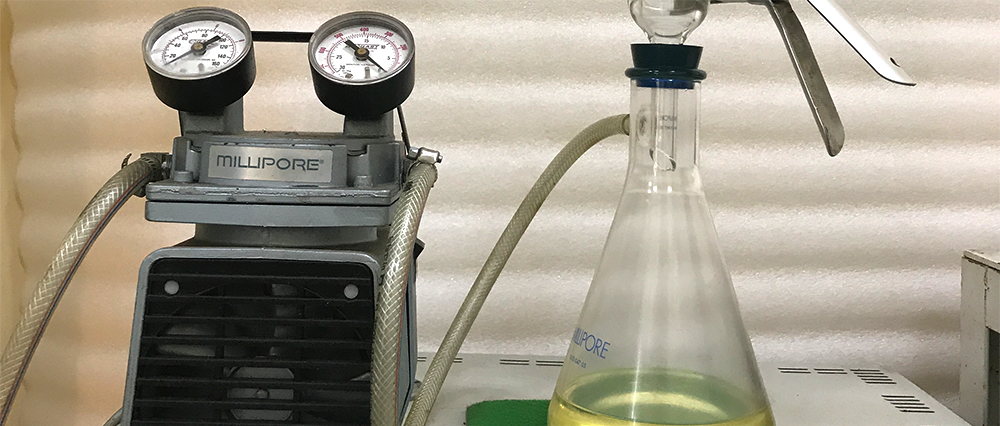

Foreign Matter Extraction Device
| Usage | For Vacuum filtration of organic solvent, aqueous solution and corrosive solution for particle contamination analysis |
|---|---|
| Filter size | 47mm |
| Filtering area | 9.6㎠ |
| Capacity | Funnel-300㎖, Flask-1L |

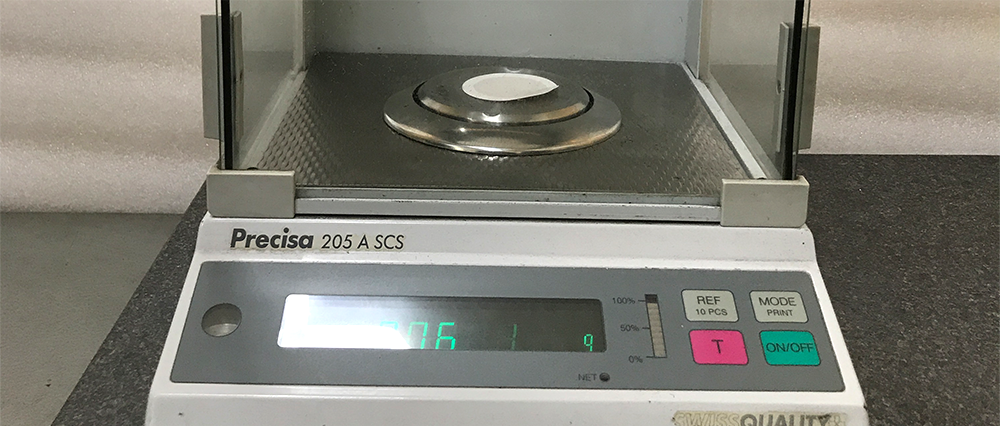

Electronic Scale (Precisa 205A SCS)
| Usage | Weighing of foreign matter |
|---|---|
| Capaciry | 0.0001 |
| Range (g/cm³) | 205g |
| Response time | 3 |
| Line voltage(AC) | 115/240 |
| Pan size | Ø30 |

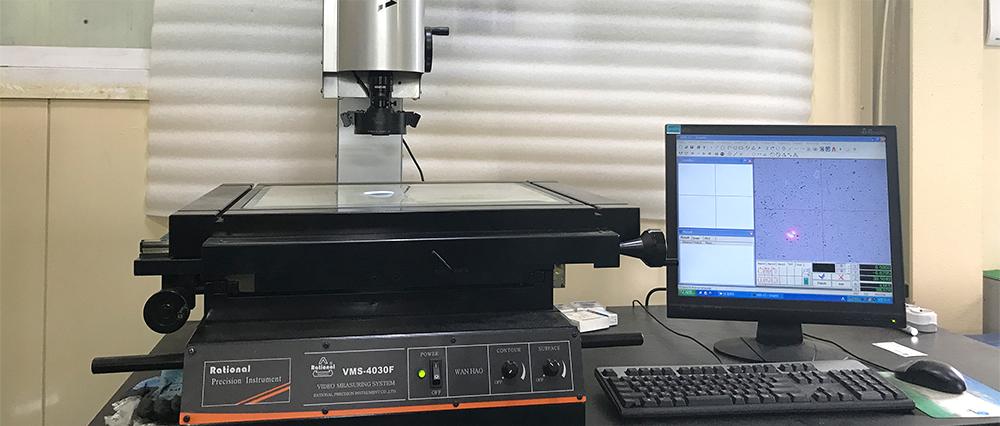

Video Meta(VMS-4030F)
| Division | VMS-4030F |
|---|---|
| XY measurement (mm) | 400x300 |
| Table size(mm) | 606x466 |
| Glass size(mm) | 450x350 |
| Z axis | 150 |
| VIDEO SYSTEM | Camera: SONY 1/2"" Color CCD Camera ZOOM LENS (U.S. NAVITAR) 0.7X – 4.5X Image auto detection & crosshair recognition |
